WINDOW Raw Materials

Before Print : Removes alien substances and washed for good quality precise cutting.

Print : Prints according to requirements of customers, and dries with heat(including vaccum-metallizing and stamping)

3-dimension manufacturing : Manufactures Acryl products using CNC engraver.

Before Assembling : Inspects electrotype-products and tape jig operation for both sides.

Assembling : Assembles electrotypes with Acryl products.

It enables acryl forming of 3-dimension R value,and it contributes cost reduction and fast correspondence. In-mold injection - D-25, Acryl forming - (6~7)

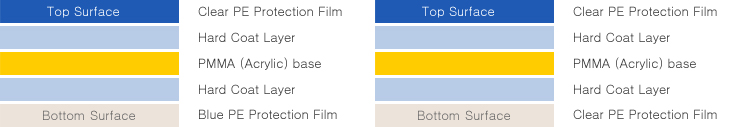

Acryl hard coating structure

Comparison according to property of matters table

Item NITTO Mitsubishi MSK
Transparency rate 92~93% 93% 92%
Extension rate(%) 5~7 8
Specific gravity 1.19 1.19 1.19
A coefficient of Thermal expansion 7x10-5 7x10-5 7x10-5
Pencil hardness(H) 6~8 5~7 More than 5
Heat resistance(80℃x240hr) No change No change No change
Cold resistance(-20℃x240hr) No change No change No change
Humidity resistance(40℃,90%,10hr) No change No change No change
Thermal change -40℃↔80℃ 10times No change No change No change
Direct ray of light No change No change No change
Methyl Alcohol(50%) No change No change No change
Ethyl Alcohol(50%) No change No change No change
Liquid soap No change No change No change
Salt water(5%) No change No change No change

Types and features of Ink

Company Series TYPE Screen mesh Use Dry Remarks
SEIKO MS8 hardening ink by
Isocyanate
hardening		 200 ~ 300 Acryl Plate, Acryl
Hard-coating
materials, coating		 set to the Touch :
RoomTemperature
(25℃) 40min,
Heating 60℃ 10min
dry-through : Room
Temperature(25℃)
for 4 days, Heating
80℃ 30 Minutes		 How water tolerance,
Alkali Tolerance
Used for normal
Acryl products
HAC Urethane,
2 mixture type		 200 ~ 300 Hard coating Acryl,
Acryl plate,
Polycarbonate Plate,
ABS Plate		 Set to the touch:
Room Temperature
(20℃) 40min, Force
dry 80℃ 40min		 Nickel Vaccum
plating. Used for external
print
Mirror ink Special Aluminum
resin mixture,
2 mixture type		 270 ~ 300 PC, PVC, PET, Acryl RoomTemperature
(20℃) 30min or Force
Dry 80℃ 0~15min		 Big particles and low
adhesiveness
Possibility of
delamination
JUJO FUN COAT META Special Aluminum
resin mixture,
2 mixture type		 270 ~ 300 Treated PET Film
Polycarbonate Plate
Acryl, etc.		 RoomTemperature
(30 min) dry or 80℃
30min, Force Dry		 Reinforcement after
stamping applied for
Printing
TEIKOKU MIR-9000 Special Aluminum
resin mixture,
2 mixture type		 250 ~ 300 PC, PVC, PET, Acryl Force Dry 80℃,
more than 30min		 Applied to developing
LG VX4700 MAIN
model

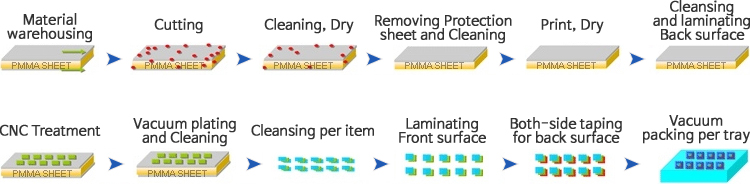

WINDOW Process

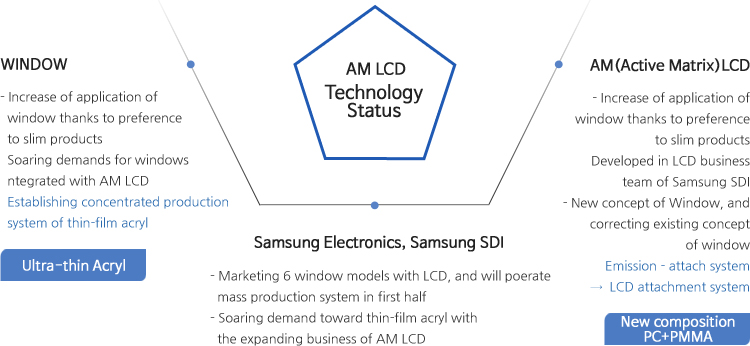

AM LCD Technology Status

Soaring development of windows owing to increase of application and connection with AM LCD Developing products in alliance with Samsung Electronics and Samsung SDI, and will be operating as mass production from 2nd quarter Operating 1000 CLEAN ROOM, and able to produce zero-defect acryl thin plate.

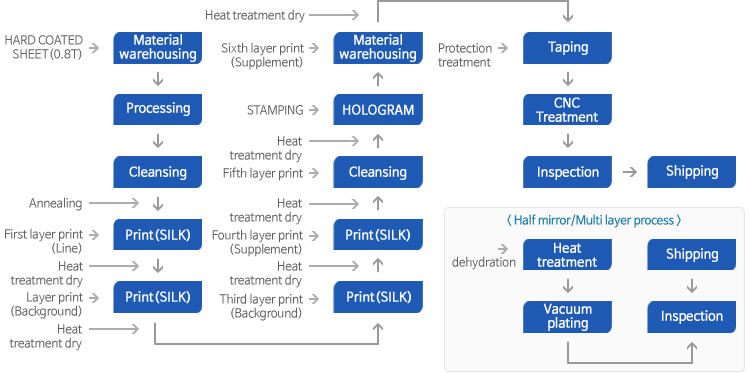

AM LCD Process

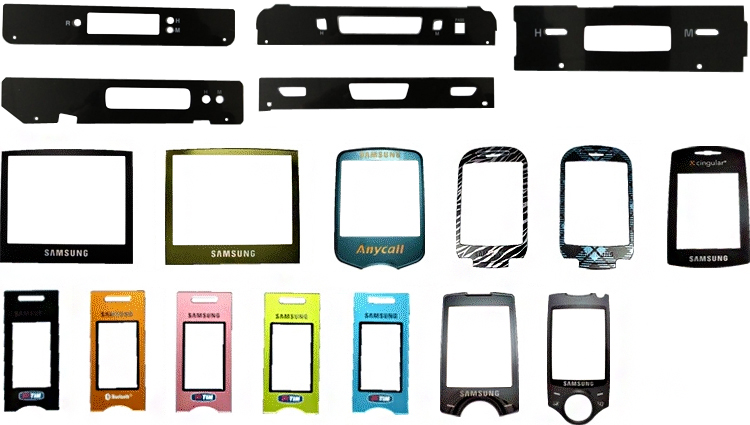

Product View
